De-Mar & Associates, Inc Parker & Foster Division Contact Information

Type J, K, T, L, N, R, S, & B Thermocouples and Type 0.00385 Ω and 0.00391 Ω Platinum RTDs

• Stock in KC for Plastics - Varidepth and Bayonet Style T/Cs from 36" to 180", Adapters, Plugs and Jacks, Panel Jack strips from 1 to 12, Plus More!
• Stock in KC for Industrial - J & K Base Elements, Ceramic Insulators, Protection Tubes, Heads, and Full Assemblies, Plus More!
• Factory Delivery of 10 Days ARO
• No Application or Environment too Tough!

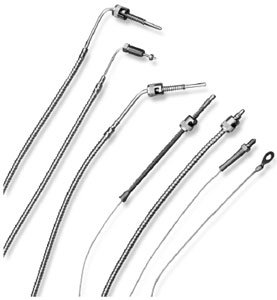

• Plastics Thermocouples
• Industrial Thermocouples
• Magnesium Oxide Insulated Thermocouples
• Adapters, Plugs & Jacks

Industrial Thermocouple/RTD Assembly
with 4 to 20 mA Retransmitting Signal

• Required supply voltage 9-40 VDC (at no load), reverse polarity protected
• Input types: J, K, T, L, N, R, S, & B Thermocouples, 2, 3, and 4 wire, Pt-100, Ni-110 and other RTD's, -10 to 100 mV signal DC, potentiometers 0 to 20 kΩ, and resistance values 0 to 400 Ω
• All styles of protection tube assemblies and MgO assemblies available with aluminum, stainless steel, NEMA 4, and NEMA 7 head options
• Model 287 2-Wire Transmitter

Stock Thermocouple Wire

• J, K, T, and S in Stock Kansas City
• 16 Gauge to 30 Gauge in Extension or Thermocouple Grade Wire either Standard or Special Limits for Certification
• Insulation Types Vary and Cover the Temperature Range of 221 °F to 2000 °F Single Reading
• Insulation Construction Types include PVC, Teflon, Glass Braid, Tefzel, Kapton, Vitreous Silica, Stainless Steel, Aluminum/Mylar Shielded
• Factory Stock Extensive or Built to Order for Special Application
• Delivery Stock to 10 Days
• 2 to 2000 Feet Available!
• Thermocouple and Extension wire
